LenelS2 is the global leader in advanced physical security solutions, including access control, video surveillance and mobile credentialing. We innovate products, systems and services to address the most complex, evolving needs of some of the world's most demanding organizations. Whether you’re operating a small- to medium-sized business or the largest global enterprise, our solutions are built to solve your unique challenges.
Look detail

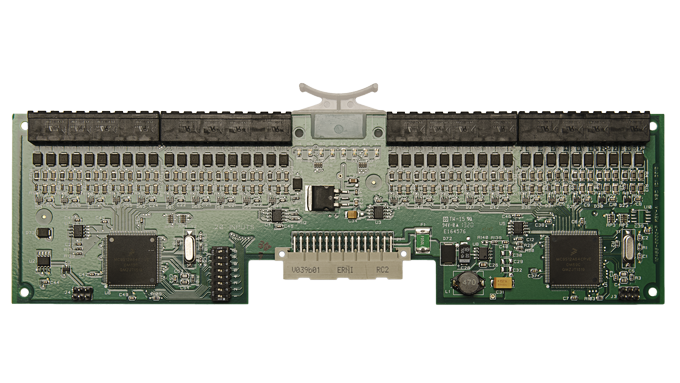

Mercury Hardware for OnGuard, redesign t ...
Mercury Hardware for OnGuard, redesign to retrofit into Legacy CASI Controllers Replaces CASI 20DI, field wiring plug compatible Supports 20 Supervised Input Points Mercury Authentic Hardware
Look detail

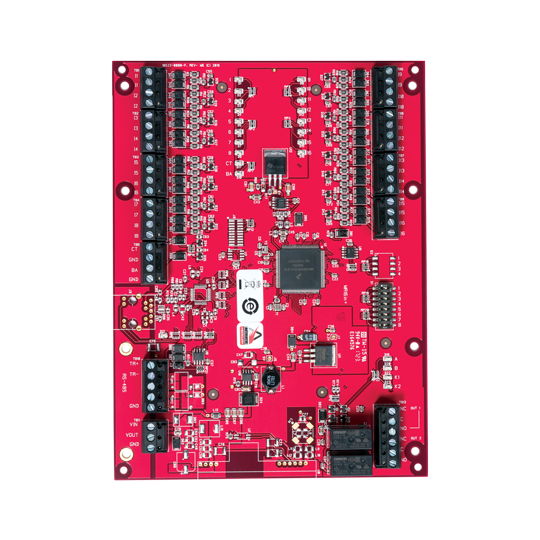

Grade B, A, and AA line supervision.12 o ...
Grade B, A, and AA line supervision.12 or 24 VDC input power.16 programmable supervised or non-supervised contacts, standard EOL: 1K/1K ohm, 1%, 1/4 watt.2 Form-C 5 A, 28 VDC contacts for load switching.2 dedicated unsupervised inputs for (cabinet) tamper and (UPS) power failure status.On-board termination jumpers
Look detail
Mercury Hardware for OnGuard, redesign t ...
Mercury Hardware for OnGuard, redesign to retrofit into Legacy CASI Controllers Replaces CASI 16DOR, field wiring plug compatible Supports 16 Relay Outputs, for controlling power for control devices (horns, lights, barriers, etc). 8 Form-C Relay outputs, 2A at 30VAC/VDC 8 Form-A Relay outputs, 2A at 30VAC/VDC Mercury Authentic Hardware
Look detail

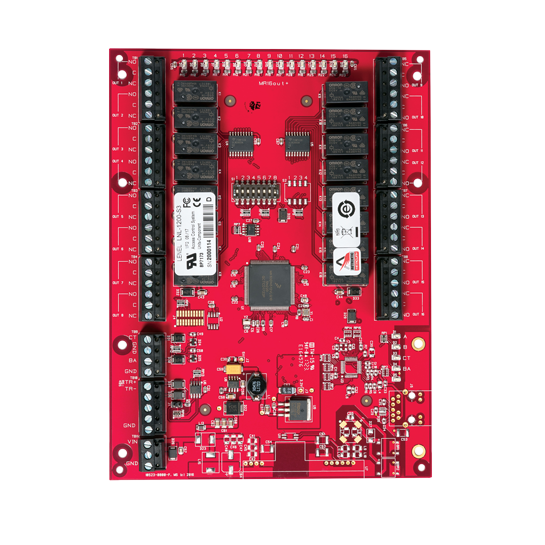

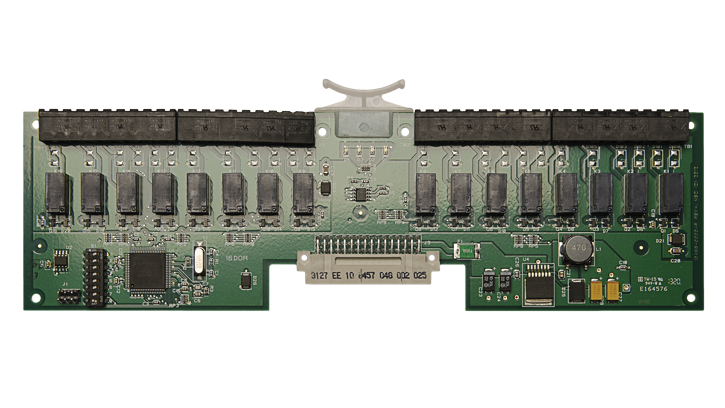

16 Form-C 5 A, 30 VDC contacts for load ...
16 Form-C 5 A, 30 VDC contacts for load switching.12 or 24 VDC input power.2 dedicated digital inputs for tamper and power failure status.RS-485 communication, multi-dropped (2-wire or 4-wire RS-485).On-board termination jumpers.DIP switch-selectable addressing
Look detail

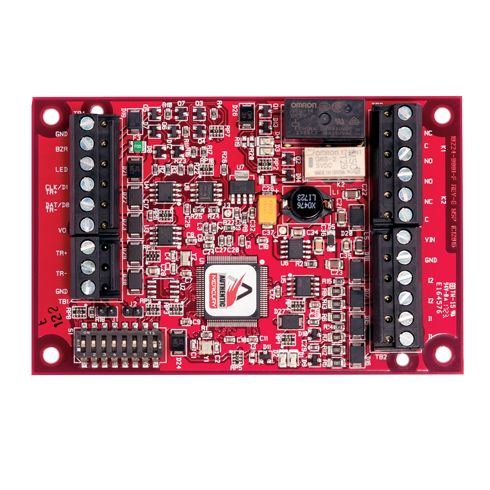

12 or 24 VDC power supply.Supports Data1 ...
12 or 24 VDC power supply.Supports Data1/Data0, Clock/Data, Supervised and Unsupervised F2F and OSDP-compatible RS-485 readers and keypads.Supports Open Supervised Device Protocol (OSDP) readers, including biometric template transfer and Secure Channel encryption.Two Form-C relay outputs (5 A door strike and 1 A aux relays).Up to 16 different card formats.Issue code support
Look detail

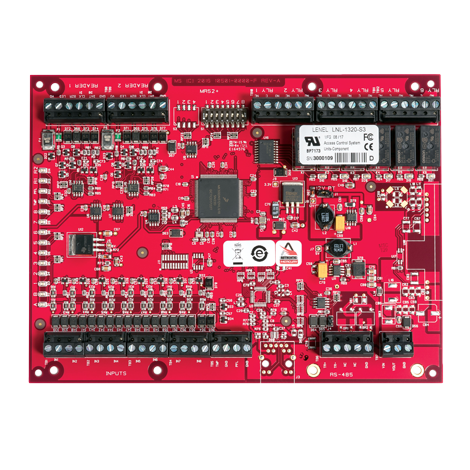

Supports Data1/Data0, Clock/Data, Superv ...
Supports Data1/Data0, Clock/Data, Supervised and Unsupervised F2F and OSDP-compatible RS-485 readers and keypads.Supports Open Supervised Device Protocol (OSDP) readers, including biometric template transfer and Secure Channel encryption.Downloadable firmware.Six Form-C 5 A at 28 VDC relay outputs.Up to 16 different formats.Issue code support for magnetic and Wiegand formats
Look detail

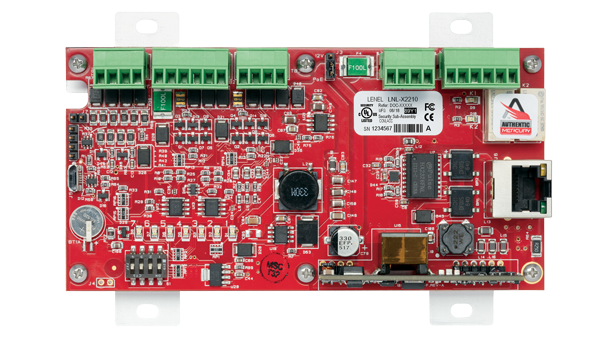

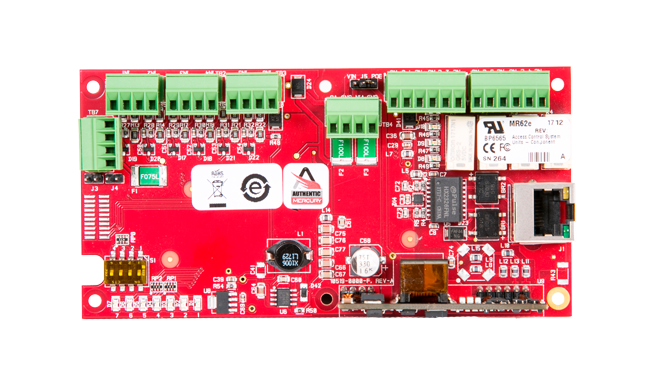

Supports 10/100 Ethernet communications ...
Supports 10/100 Ethernet communications to Lenel X-Series Intelligent System Controllers.Advanced Encryption Standard 256-bit encryption supported.Mounts into all standard EMEA PSU enclosures or standard ANSI/NEMA triple gang switch box for a compact footprint.Firmware stored in flash memory; background download of firmware updates supported.Custom or standard end-of-line resistors supported.Features when in network-connected dual door controller mode
Look detail
Controller Functionality On-board Ethern ...
Controller Functionality On-board Ethernet 10/100Base-T port. DHCP and fixed IP addressing supported. DNS device naming through DHCP extended commands 16 MB of available on-board, non-volatile flash memory Battery-backed, non-volatile storage of 50,000 events Firmware stored in flash memory, background download of firmware updates supported
Look detail

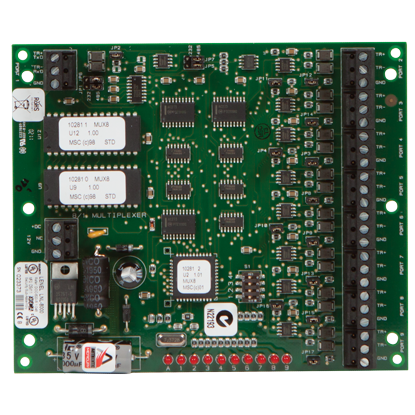

Host communications - 38.4 Kbps direct w ...
Host communications - 38.4 Kbps direct wire (RS-232/RS-485 multidropped).12 VDC input power.Status LEDs for heartbeat, upstream and downstream communication.Support for either 2-wire or 4-wire RS-485 topologies.RS-485 on-board termination is jumper selectable.Can be used for retrofit and new wiring configurations
Look detail
6 MB of available on-board, non-volatile ...
6 MB of available on-board, non-volatile flash memory.Firmware stored in flash memory, background download of firmware updates supported.Optional secondary communications available through a USB to Ethernet connection.RNDIS support enables USB connection to display controller web configuration pages.240,000 cardholders, 50,000 event transaction buffer.Up to 128 access levels per cardholder
Look detail

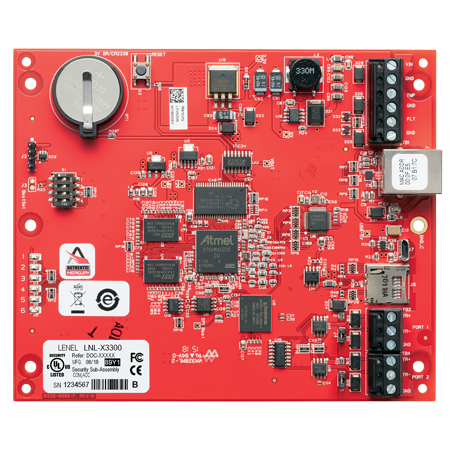

DNS device naming through DHCP extended ...
DNS device naming through DHCP extended commands.6 MB of available on-board, non-volatile flash memory.Battery-backed, non-volatile storage of 50,000 events.Configurable option for Data at Rest encryption.Firmware stored in flash memory, background download of firmware updates supported.Supports up to sixteen badge formats
Look detail

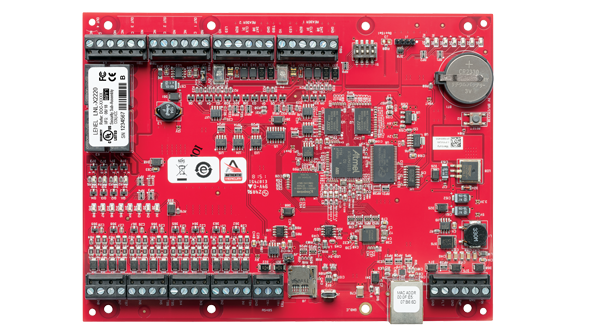

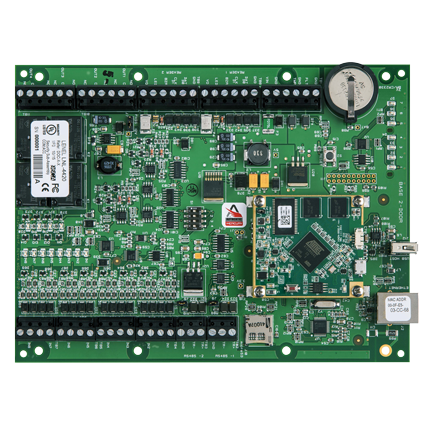

DHCP and fixed IP addressing supported.D ...
DHCP and fixed IP addressing supported.DNS device naming through DHCP extended commands.Optional Secondary NIC, USB port (2.0) with optional adapter.15 MB of available on-board, non-volatile flash memory.Battery-back, non-volatile storage of 50,000 events.Configurable option for Data at Rest encryption
Look detail

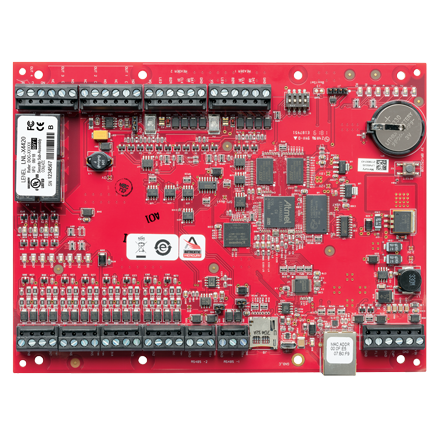

Support for DHCP and fixed IP addressing ...
Support for DHCP and fixed IP addressing.DNS device naming through DHCP extended commands.96 MB of available on-board, non-volatile flash memory for badge data, plus dedicated storage for future apps and extensions.Battery-backed, non-volatile storage of 50,000 events.Configurable option for Data at Rest encryption.Firmware stored in flash memory
Look detail
2-Door Interface Module Board Only Repla ...
2-Door Interface Module Board Only Replacement or expansion 2 door interface board only; intended to replace or add to a TP-ADD-2D or GOES-ADD-2D-E. No enclosure or power supply included.
